「第4回 オフラインリアルタイムどう書く」へなちょこ解答(Java)
昨日は、「第4回 オフラインリアルタイムどう書く」でした。
…が、自分は所用で参加できなかったため、1日遅れで問題を解きました(^^;
今回は、テトロミノ認識です!
4つの座標から、テトロミノの名称を判定する。

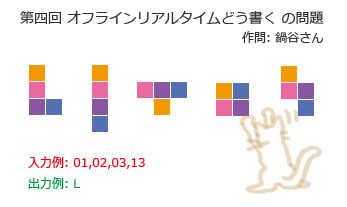

テトロミノ認識〜 横へな 2012.10.6
- 10x10 のマス目のうち、いくつかを塗る。座標は、塗るマス目の位置を示す。
- 塗るマス目の指定は46,67,57,47のように行う。
- ※座標は xy の順でいずれも一桁(009)。座標の区切りはコンマ。
- 塗った形がテトロミノをなしている場合は、そのテトロミノの名称(下表参照)を出力する。
- 回転・裏返し などで同じ形になるものは同じとみなす(つまり、下表の5種類しかない)
- テトロミノをなしていない場合は、"-" と出力する。
- 座標は必ず4つあるが、重複している場合がある。(その場合はテトロミノをなさない)
テトロミノという言葉を初めて知りました。この図形って、そういう呼び名があるのですね。
解答
Javaです。長いです。
import java.util.ArrayList; import java.util.List; public class Tetroid { private final int CELL_NUM = 4; protected int getX(String str) { return Integer.parseInt(String.valueOf(str.charAt(0))); } protected int getY(String str) { return Integer.parseInt(String.valueOf(str.charAt(1))); } protected final boolean isL(int[][] shape) { int firstX = shape[0][0]; int firstY = shape[0][1]; if (firstX != shape[1][0] || (firstY + 1) != shape[1][1]) { return false; } if (firstX != shape[2][0] || (firstY + 2) != shape[2][1]) { return false; } if ((firstX + 1) != shape[3][0] || (firstY + 2) != shape[3][1]) { return false; } return true; } protected final boolean isI(int[][] shape) { int firstX = shape[0][0]; int firstY = shape[0][1]; if (firstX != shape[1][0] || (firstY + 1) != shape[1][1]) { return false; } if (firstX != shape[2][0] || (firstY + 2) != shape[2][1]) { return false; } if (firstX != shape[3][0] || (firstY + 3) != shape[3][1]) { return false; } return true; } protected final boolean isT(int[][] shape) { int firstX = shape[0][0]; int firstY = shape[0][1]; if ((firstX + 1) != shape[1][0] || firstY != shape[1][1]) { return false; } if ((firstX + 1) != shape[2][0] || (firstY + 1) != shape[2][1]) { return false; } if ((firstX + 2) != shape[3][0] || firstY != shape[3][1]) { return false; } return true; } protected final boolean isO(int[][] shape) { int firstX = shape[0][0]; int firstY = shape[0][1]; if (firstX != shape[1][0] || (firstY + 1) != shape[1][1]) { return false; } if ((firstX + 1) != shape[2][0] || firstY != shape[2][1]) { return false; } if ((firstX + 1) != shape[3][0] || (firstY + 1) != shape[3][1]) { return false; } return true; } protected final boolean isS(int[][] shape) { int firstX = shape[0][0]; int firstY = shape[0][1]; if ((firstY + 1) != shape[1][1]) { return false; } if ((firstX + 1) != shape[2][0] || (firstY + 1) != shape[2][1]) { return false; } if ((firstX + 1) != shape[3][0] || (firstY + 2) != shape[3][1]) { return false; } return true; } protected int[][] flipHorizontal(int[][] shape) { int[][] result = new int[CELL_NUM][2]; for (int i = 0; i < CELL_NUM; i++) { result[i][0] = 4 - shape[i][0]; result[i][1] = shape[i][1]; } sortCell(result); return result; } protected int[][] flipVertical(int[][] shape) { int[][] result = new int[CELL_NUM][2]; for (int i = 0; i < CELL_NUM; i++) { result[i][0] = shape[i][0]; result[i][1] = 4 - shape[i][1]; } sortCell(result); return result; } protected int[][] rotate90deg(int[][] shape) { int[][] result = new int[CELL_NUM][2]; for (int i = 0; i < CELL_NUM; i++) { result[i][0] = 4 - shape[i][1]; result[i][1] = shape[i][0]; } sortCell(result); return result; } protected int[][] rotate180deg(int[][] shape) { int[][] result = new int[CELL_NUM][2]; for (int i = 0; i < CELL_NUM; i++) { result[i][0] = 4 - shape[i][0]; result[i][1] = 4 - shape[i][1]; } sortCell(result); return result; } protected int[][] rotate270deg(int[][] shape) { int[][] result = new int[CELL_NUM][2]; for (int i = 0; i < CELL_NUM; i++) { result[i][0] = shape[i][1]; result[i][1] = 4 - shape[i][0]; } sortCell(result); return result; } protected int compare(int[] is, int[] target) { if (target[0] < is[0]) { return 1; } else if (is[0] < target[0]) { return -1; } if (target[1] < is[1]) { return 1; } else if (is[1] < target[1]) { return -1; } return 0; } protected void sortCell(int[][] shape) { for (int i = 0; i < CELL_NUM - 1; i++) { for (int k = CELL_NUM - 1; i < k; k--) { if (0 < compare(shape[k - 1], shape[k])) { int[] tmp = shape[k]; shape[k] = shape[k - 1]; shape[k - 1] = tmp; } } } } protected int[][] getData(String input) { int[][] result = new int[4][2]; String[] strings = input.split(","); List<int[]> tmp = new ArrayList<>(); for (String str : strings) { int x = getX(str); int y = getY(str); int[] point = { x, y }; tmp.add(point); } return tmp.toArray(result); } protected char shapeCheck(int[][] shape) { if (isL(shape)) { return 'L'; } if (isI(shape)) { return 'I'; } if (isT(shape)) { return 'T'; } if (isO(shape)) { return 'O'; } if (isS(shape)) { return 'S'; } return '-'; } protected char execute(String input) { int[][] shape = getData(input); sortCell(shape); int[][][] shapes = new int[8][4][2]; shapes[0] = shape; shapes[1] = rotate90deg(shape); shapes[2] = rotate180deg(shape); shapes[3] = rotate270deg(shape); shapes[4] = flipHorizontal(shape); shapes[5] = rotate90deg(shapes[4]); shapes[6] = flipVertical(shape); shapes[7] = rotate90deg(shapes[6]); for (int[][] point : shapes) { char result = shapeCheck(point); if (result != '-') { return result; } } return '-'; } }
- 上のコードとテストコード https://gist.github.com/3847802
考え方の覚書き
マス目の集合がテトロミノをなすかどうか
まず、向きがまっすぐな場合のテトロミノの判定方法を考えました。テトロミノをなす各マスについて、マスが座標の昇順で並んでいると想定して、1つ目のマスからの相対座標を定義しました。
たとえば、Lは、次のとおりです。
書き始めの地点のマスの座標が(x, y)のとき、隣接するマスの座標は(x, y+1)、その次のマスの座標は(x, y+2)、最後のマスの座標は(x+1, y+2)です。
これを、L、I、T、O、Sそれぞれについて定義しました。
コードでいうと、isL、isI、isT、isO、isSというメソッドがそれです。
回転と反転への対応
次に、定義したパターンとの照合方法を考えました。「O」だけは、向きにかかわらず、定義したパターンで照合できますが、それ以外は、回転や反転に対応しなければなりません。

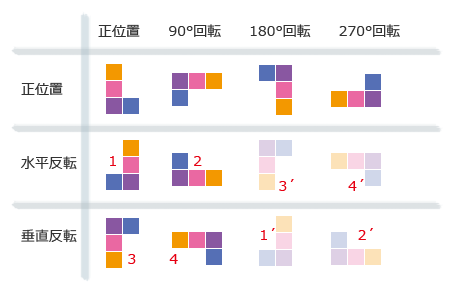

ここで、対称性に最も乏しいLに着目し、あり得るすべての向きを列挙します。
色が薄いパターンは、既出であることを表わします。たとえば、「1´. 垂直反転+180°回転」は、「1. 正位置の水平反転」と同じであるため、照合を省略できます。これをまとめると、次の8種類の向きに対してパターンと照合すれば、すべての反転と回転をカバーできることになります。
- 正位置
- 正位置の90°回転
- 正位置の180°回転
- 正位置の270°回転
- 正位置の水平反転
- 水平反転+90°回転
- 正位置の垂直反転
- 垂直反転+90°回転
回転と反転の座標変換は、5x5のマス目を想定して書きました。パターンを相対座標で定義したので、実際の座標値を気にする必要はありません。
コードでいうと、flipHorizontal、flipVertical、rotate90deg、rotate180deg、rotate270degというメソッドがそれです。
実行
というわけで、入力値を8種類の向きに変換して、その都度、座標の昇順にソートし、定義したパターンと照合しました。
所感
1時間じゃ全然終わりませんでした。45分くらい机上でロジックを検証して、45分くらいでコードを書いて、30分くらい誤検出のデバッグをしていました。ひー・・・
書いてる途中に埋め込んだバグは、
- 回転・反転後に座標のソートを忘れていた
- パターン定義で、4マスすべてのX座標、Y座標を定義していなかった
といったところでした(^^;
パターン照合の問題は、あまり解いたことがなかったので新鮮でした!
鍋谷さん、問題ありがとうございました。今度はぜひオフラインで参加させてください。
